Heinrich Wilhelm Justus Boecker, 1855-1927
W. Emil Boecker, 1851-1945
by Brian Stevenson
last updated May, 2015
Heinrich Boecker was a professional microscope slide preparer, working in Wetzlar, Germany from 1875 until the time of his death. A brother, Emil, produced microscopes and related equipment under his own name, and in partnership with Gottlieb Fecker, between 1879 and 1885. Some museums and other modern sources have incorrectly attributed Boecker microscopes to Heinrich.

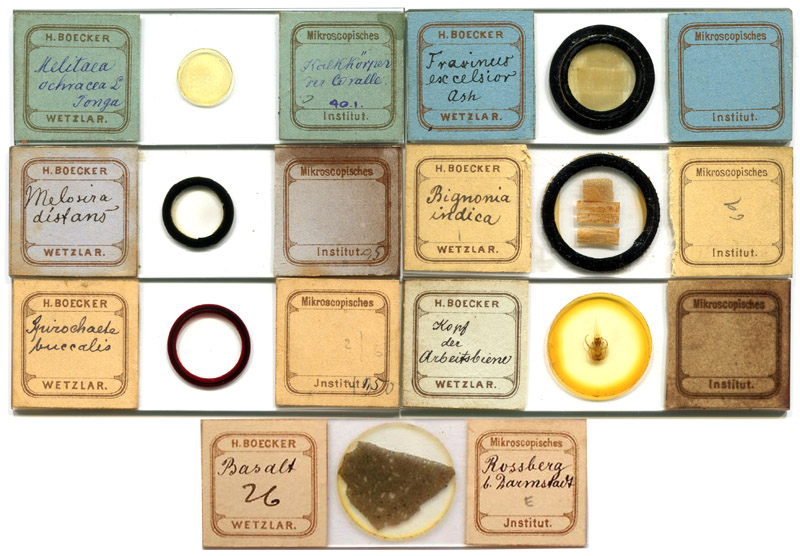

Figure 1. Examples of microscope slides prepared by Heinrich Boecker. A wide variety of specimen types were produced, from insects to botanicals to diatoms to minerals. Not all of the slides he sold were produced by Boecker, as he is known to have retailed mounts by Eduard Thum and Heinrich Frey. Boecker’s labels came in a variety of colors - there are no apparent correlations between color and specimen type or quality, and slides bearing two different colors of label are not uncommon.
Figure 2. A sampling of advertisements published by Heinrich Boecker. He offered a wide variety of mounted and unmounted objects, plus supplies for customers to make their own slides. Heinrich was described as a preparer and source of slides in various microscopy and entomology books through 1930.
Figure 3. Heinrich Boecker, photographed August 3, 1926. Adapted from a family photograph provided by his great-grandson, Claudius Dietzsch.
Heinrich Boecker was born July 30, 1855 in Breckerfeld, Westfalen, a son of Friedrich Wilhelm Boecker.
Boecker established his business in 1875, according to Bracegirdle’s Microscopical Mounts and Mounters. Heinrich named his operation "Mikroskopisches Institut" (Microscopic Institute). That title was also adopted by several other German slide-makers. Inexplicably, Boecker’s slide labels spell the business as "Mikroscopisches" (Figure 1). That German/English hybrid spelling was also used on the similar-looking labels of Moritz Hensoldt (also of Wetzlar) and Carl Rodig (of Hamburg). Boecker’s labels were identical to those of Rodig and similar to those of Hensoldt, so the odd spelling may reflect a quirk of a shared print shop. There were not any known business connections between Boecker, Rodig or Hensoldt.
An 1879 list of German naturalists gave Heinrich’s address as 78 Gernsbacherstrasse, Wetzlar. He is known to have lived at several other locations in that city during his ca. 55 year career: 8 Johannisstrasse, 35 Silhoferstrasse from 1882-85, 35 Sophienstrasse in 1892, Steinstrasse in 1895, and 13 Bruhlsbachstrasse in the 1920s.
Boecker issued catalogue number 8 in 1881 (Figure 4). In includes references to medals awarded in 1878, 1879, and 1880.Heinrich rapidly acquired an international reputation as a skillful slide maker. At an 1884 meeting of the Royal Microscopical Society, "Herr H. Boecker's collection of slides of Bacteria, Bacilli, &c, exhibited in the room, were referred to by Mr. Crisp as one of the best yet seen in this country".
While Heinrich Boecker mounted a wide range of biological, mineral and chemical preparations, he appears to have had a personal interest in butterflies and other insects. For example, his entry in the 1882 Naturalists’ Universal Directory reads, "Boecker, Heinrich, Mikroskopisches-Institut, Wetzlar. Mic, MacroLepid. C. Ex. Wishes exotic Lepidoptera for microscopic objects. Will send gratis my new Catalogue of microscopical preparations". Judging from advertisements and descriptions of what Heinrich retailed, it is likely that the requested lepidoptera specimens were for his personal collection.
Heinrich Boecker died on September 28, 1827.
Heinrich appears to have used only one style of label during his career (Figure 1). Thus, it is probably impossible to accurately date when any particular slide was produced during that 52 year period.

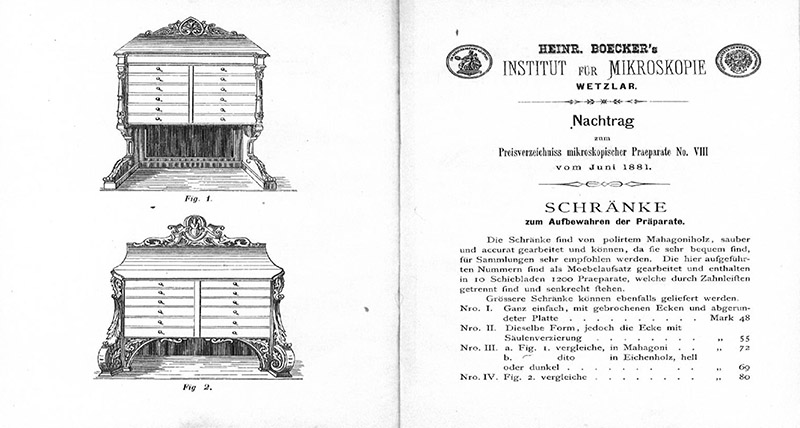

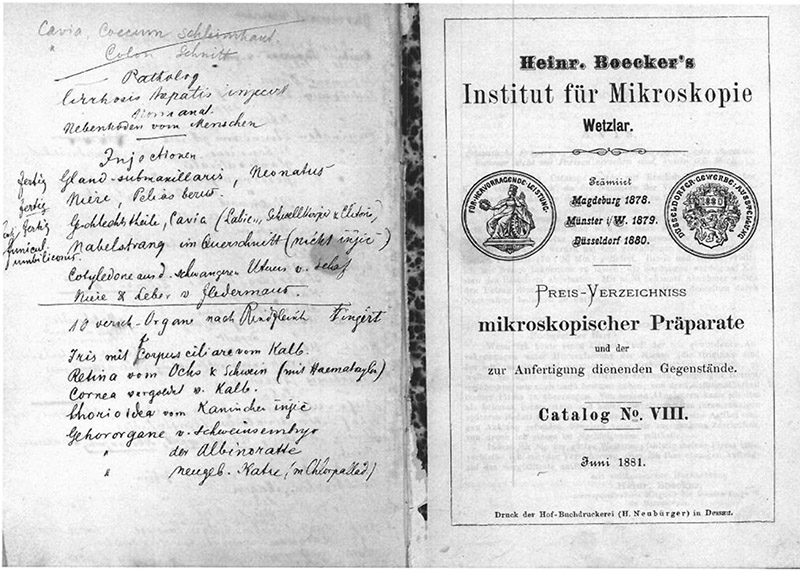

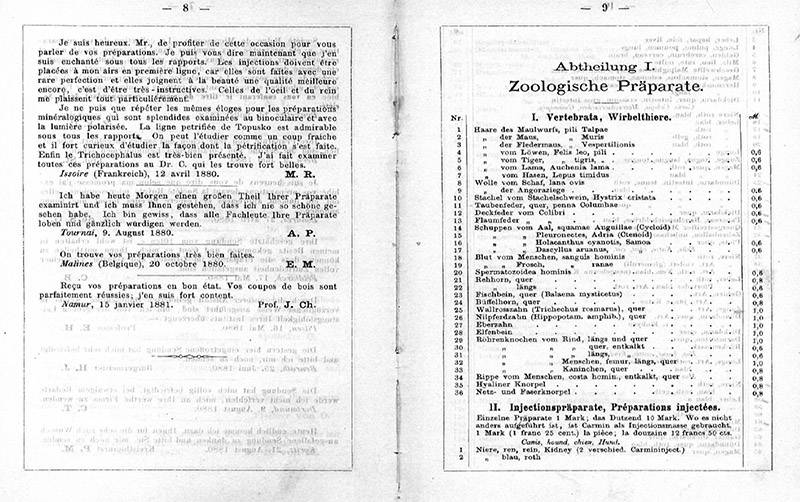

Figure 4. Excerpts from Heinrich Boecker’s 1881, 8th catalogue of microscope slides, provided by Claudius Dietzsch.
Figure 5. Photomicrograph of an H. Boecker preparation of the life stages of the human louse, by S.T. Stein, 1884.
Figure 6. 1883 advertisements from Heinrich and Emil Boecker, from the Journal of the Royal Microscopical Society.
The relationship between slide-maker Heinrich Boecker and instrument-maker W. Emil Boecker was clarified by Leopold Dippel in his Das Mikroskop und Seine Anwendung. Writing about Emil’s microtome, Dippel stated, "Ich selbst habe das Mikrotom ... noch nicht naher gepruft, da aber Herrn Boecker dessen Bruder Heinrich Boecker als sachkundiger Berather in diesen Dingen zur Seite steht", i.e., "I have this microtome but have not examined it in detail, but Mr. Boecker’s brother Heinrich Boecker is an expert in these things".
The 1882 Tageblatt der Versammlung Deutscher Naturforscher und Aerzte placed both Heinrich and Emil at the same house: 8 Johanisstrasse, Wetzlar. Together, they were described as dealers of "Mikroskope, Mikrotome, Objectivrevolver, Zeichenapparat, Loupen etc., mikroskopoisebe Praparate (zoologische, patholog., botanische)".
Emil (born 1851) worked for the Ernst Leitz microscope firm in Wetzlar between 1869 and 1871. After traveling for several years, Emil retuned home and opened his independent business in 1879. About 1883, he formed a partnership with telescope-maker Gottlieb Fecker, who later married the Boeckers’ sister, Emma. Emil left the partnership and went back to work for Leitz in 1885. He retired in 1931, and died in 1945.
Fecker continued the business for another couple of years, as "Fecker & Company". This included Heinrich to some extent, as an 1885 patent for a "spring regulator for the engines of astronomical and meteorological instruments" was issued to "Fecker, G., und H. Boecker, in Firma Fecker & Co. in Wetzlar". That point raises the possibilities that Heinrich may have also worked in the manufacture of microscopes and other apparatus with his brother, Emil, and/or for Leitz.
Fecker moved to the USA in 1887, initially working in Washington, D.C., then with Warner & Swasey in Cleveland, Ohio, from 1895 until his death in 1921.

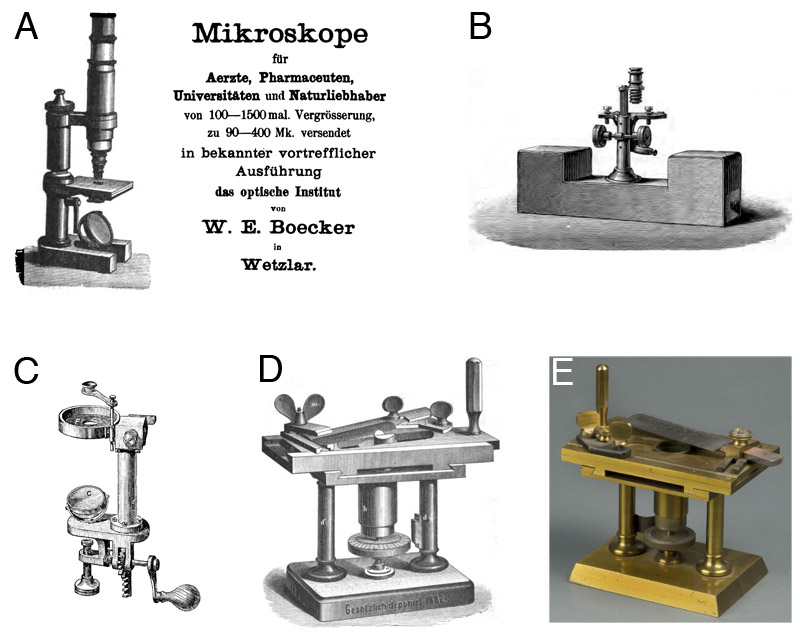

Figure 7. Some apparatus produced by Emil Boecker. He also made a freezing microtome of note. A. Monocular compound microscope and advertisement, from Strasburger’s 1884 ’Das Botanische Practicum’. B. Dissecting microscope, from Dippel’s 1885 ’Grundzuge der Allgemeinen Mikroskopie’. C. Air-pump microscope from 1883, "which enables an object to be examined in a vacuum under the Microscope, and the progressive effects attendant upon the exhaustion of the air watched, as well as serving for the more ordinary purposes of an air-pump in mounting". D. Microtome, from Dippel’s 1882 ’Das Mikroskop und Seine Anwendung’. E. An extant microtome that is currently in the Harvard University Collection of Historical Scientific Instruments. It is marked on the base "W.E. Boecker Wetzlar 1883". Image used for nonprofit, educational purposes.
Figure 8. An 1885 advertisement from Boecker and Fecker, the partnership between Emil Boecker and Gottlieb Fecker.
There was evidently a third Boecker brother, Ernst, born in 1856. His occupation is not known, but he had a strong interest in entomology. Ernst spent a substantial amount of time in Tenerife, Canary Islands. He wrote a multi-part article on the beekeepers of Tenerife for Isis, a German nature magazine, in 1883. Ernst sold insect specimens from the Canary Islands, available by subscription or through Heinrich (Figure 7). Victor von Roder wrote in 1883 about a group of diptera he received from Ernst, in which he complained that the insects had suffered from soaking in alcohol, and could not be identified with confidence. In 1914, Ernst placed an advertisement in another entomology magazine, offering to sell 50-60 caterpillars. He then lived at 22 Pariserstrasse, Wetzlar. An 1930 address book of entomologists recorded him at that same address, and being a specialist in lepidoptera. Circa 1937, Ernst donated an "extensive butterfly and beetle collection" to the city schools of Wetzlar.

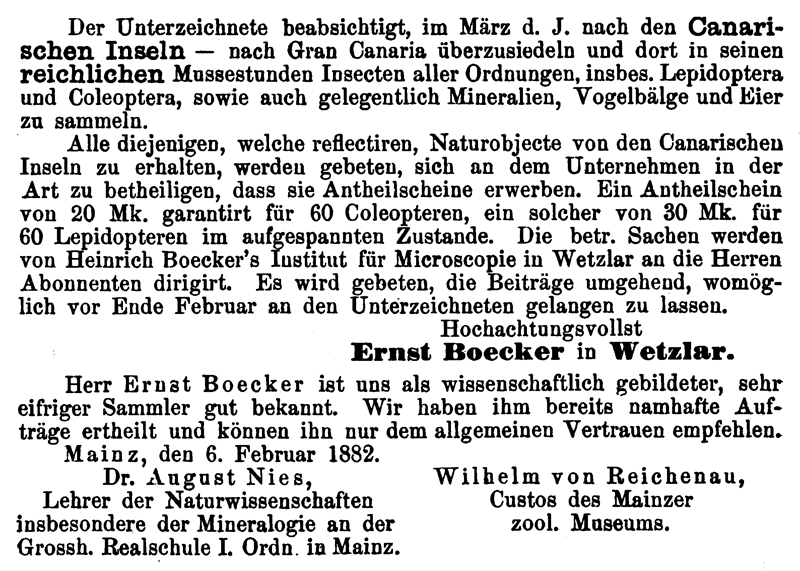

Figure 9. An 1882 advertisement for Ernst Boecker’s insect specimens from the Canary Islands, which were available through "Heinrich Boecker’s Institut fur Microscopie in Wetzlar".

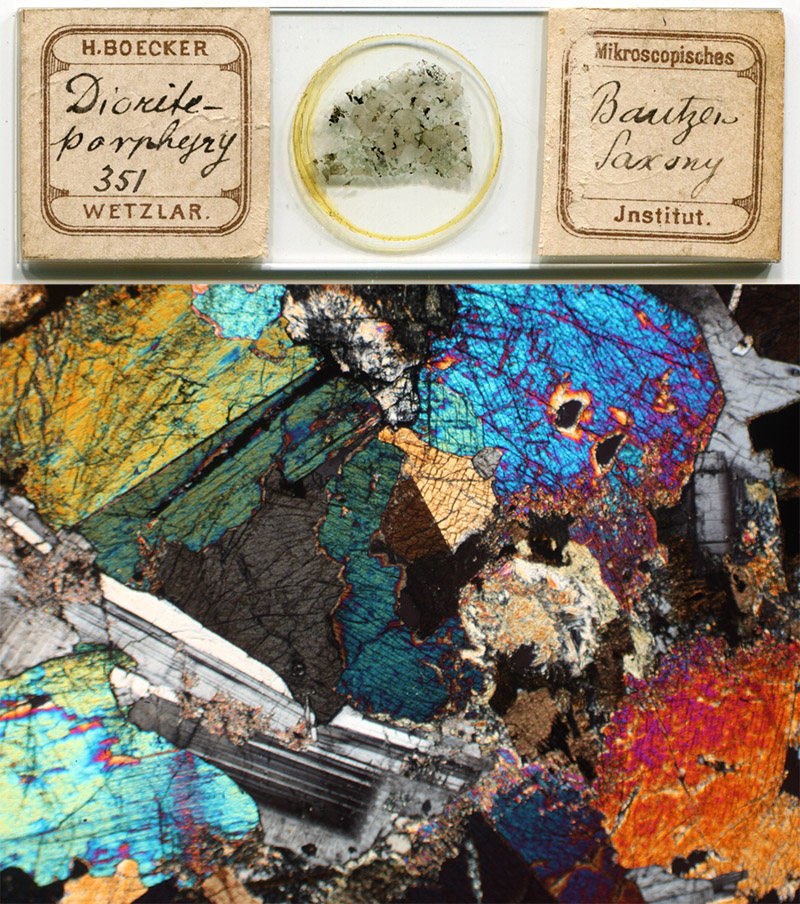

Figure 10. A Heinrich Boecker microscope slide of a thin-section of dolorite. A view of the specimen is shown below, photographed with a 4x objective lens and crossed polarizing filters.
AcknowledgementMany thanks to Dr. Claudius Dietzsch and other descendants of Heinrich Boecker, for generously contributing pictures and information on their ancestor.
Beitrage zur Entomologie (1961) "Boecker, Ernst Josef (1856 - ), palaarktische Lepidoptera 1937 an die Stadt Wetzlar (fur stadt. Schulen)", page 487
Boecker, Ernst (1883) Die Bienenzucht aus Teneriffa, Isis: Zeitschrift fur alle Naturwissenschaftlichen Liebhabereien, Vol. 8, pages 27-29, 211-213, 220-221, 227-229
Boecker, Heinrich (1880) Letter on microscope suppliers in German and elsewhere, Isis: Zeitschrift fur alle Naturwissenschaftlichen Liebhabereien, Vol. 5, pages 193-194
Boecker, Heinrich (1929) "Lista XXVII de preparaciones microscopicas: 1929, Instituto Boecker - Casa especializada en preparaciones microscopicas, Wetzlar (Alemania)", Published in Madrid
Bracegirdle, Brian (1998) Microscopical Mounts and Mounters, Quekett Microscopical Club, London, pages 14, 118, 156 and 192, and plates 7C, 7D, 26B and 44K
Central-zeitung fur Kinderheilkunde (1878) Advertisement from Heinrich Boecker, Vol. 1, page 162
Chemiker-Zeitung (1879) Advertisement from Heinrich Boecker, Vol. 3, page 746
Chemiker-Zeitung (1909) "Wetzlar. Beinr. Boecker mikroskopisches Institut Wetzlar. Inhaber: Fabrikant Heinrich Boecker- Wetzlar. W", Vol. 33, page 939
Correspondenz-Blatt der Internationalen Vereinigung Lepidopteren- und Coleopteren-Sammlern (1884) Advertisement from Heinrich Boecker, Vol. 1, page 55
Dippel, Leopold (1882) Das Mikroskop und Seine Anwendung, Friedrich Vieweg und Sohn, Braunschweig, pages 680-681
Dippel, Leopold (1885) Grundzuge der Allgemeinen Mikroskopie, Friedrich Vieweg und Sohn, Braunschweig, pages 216-217, 265, 306 and 505
Entomologen-Adressbuch (1930) "Wetzlar - Boecker, H., Fabrikant. Lep.", 3rd edition
Entomologische Nachrichten (1878) Advertisement from Heinrich Boecker, Vol 4, page 330
Entomologische Nachrichten (1882) Advertisement from Ernst Boecker, Vol 8, end of April issue
Entomologische Zeitschrift (1903) Advertisements from Heinrich Boecker, Vol. 17, advertising sections of numerous issues
Entomologische Zeitschrift (1937) Vol. 51, page 265
Handbuch der Biologischen Arbeitsmethoden (1924) "Wetzlar. Heinrich Boecker, Mikroskopisches Institut (Mikroskopische Praparate usw)", Part 11
Harvard University Department of the History of Science (accessed October, 2013) Image of microtome by W. Emil Boecker, dated 1883, http://dssmhi1.fas.harvard.edu/emuseumdev/code/emuseum.asp?emu_action=searchrequest&newsearch=1&moduleid=1&profile=objects¤trecord=1&searchdesc=Related%20to%20Heinrich%20Boecker&rawsearch=seealsoid/,/is/,/7186/,/false/,/true&style=single
http://home.europa.com/~telscope/tsus.txt (accessed October, 2013) Fecker
Internationale Entomologische Zeitschrift (1914) Advertisement from Ernst Boecker, Vol. 8-9, page 128
Journal of the Royal Microscopical Society (1883) Boecker's air-pump microscope, Second series, Vol. 3, pages 112-113
Journal of the Royal Microscopical Society (1883) Advertisements from W. Emil Boecker and Heinrich Boecker, Second series, Vol. 3, March issue, back cover
Journal of the Royal Microscopical Society (1884) Report of the meeting of May 14, 1884, Second series, Vol. 4, pages 503-504
Meteorologische Zeitschrift (1885) Advertisements from Boecker and Fecker, Vol. 2, advertising sections of the January, February, March-April and May issues
Migula, Walter (1893) An Introduction to Practical Bacteriology: For Physicians, Chemists and Students, translatd by M. Campbell, edited by H.J. Campbell, Swan Sonnenschein & Co, New York, Macmillan & Co, Advertisement Heinrich Boecker, rear of book
Natural History Museum holdings (accessed October, 2013) Boecker, W Emil, 1 illustrated price list and 1 catalogue printed in German from W Emil Boecker, Wetzlar, Germany, dated February 1883, http://www.nhm.ac.uk/research-curation/library/archives/catalogue/dserve.exe?dsqServer=placid&dsqIni=Dserve.ini&dsqApp=Archive&dsqDb=Catalog&dsqCmd=show.tcl&dsqSearch=%28RefNo==%27DF%20ZOO%2F200%2F24%2F19%27%29
The Naturalists' Universal Directory (1882) "Boecker, Heinrich, Mikroskopisches-Institut, Wetzlar. Mic, MacroLepid. C. Ex. Wishes exotic Lepidoptera for microscopic objects. Will send gratis my new Catalogue of microscopical preparations", S.E. Cassino, Boston, page 81
Pharmazeutische Zentralhalle fur Deutschland (1880) "Praparate, mikroskopische: Heinr. Boecker, Wetzlar", Vol. 21, page xii
Pharmazeutische Zentralhalle fur Deutschland (1890) Advertisements from Heinrich Boecker, Vol. 31, numerous issues
von Roder, Victor (1883) Dipteren von den Canarischen Inseln, Wiener Entomologische Zeitung, Vol. 2, page 93
Rosenbauer, Karlheinz A. (2003) Fecker & Comp., Boecker & Fecker, Emil Boecker - Mechaniker, in Mikroskopische Praparate, Vol. 1, page 8
Rosenbauer, Karlheinz A. (2003) Heinrich Boecker - Mikroskopisches Institut, in Mikroskopische Praparate, Vol. 1, pages 8-11
Rowan, Steven W., editor (2008) Cleveland and its Germans, Western Reserve Historical Society, page 111
Stein, S. Theodor (1884) Das Mikroskop und die Mikrographische Technik, Wilhelm Knapp, Halle, pages 313 and 322
Strasburger, Eduard (1884) Das Botanische Practicum, Gustav Fischer, Jena, Advertisements from W.E. and H. Boecker at rear of book
Tageblatt der Versammlung Deutscher Naturforscher und Aerzte (1879) "Boecker, Heinrich, Mikroskop. Institut, Wetzlar, Gernsbacherstrasse 78", Vol. 52, page 13
Tageblatt der Versammlung Deutscher Naturforscher und Aerzte (1882) "Boecker, W.E., Optiker, Wetzlar - Buffleb, Kaufmann, Johannisstrasse 8", "WE und H Boecker Mikroskope, Mikrotome, Objectivrevolver, Zeichenapparat, Loupen etc., mikroskopoisebe Praparate (zoologische, patholog., botanische)", and "Boecker, H., Optikus, Wetzlar - Kaufm. Buffleb, Johannisstrasse 8", Vol. 55, pages 12, 25 and 35
United States censuses, accessed through ancestry.com
Verzeichniss der von dem Kaiserlichen Patentamt (1887) "Fecker, G., und H. Boecker, in Firma Fecker & Co. in Wetzlar. Federregulator fur die Triebwerke von astronomischen und meteorologischen Instrumenten. 29. Mai 1886. 38024", page 63
Whitman, Charles O. (1885) An ether freezing apparatus, in Methods of Research in Microscopical Anatomy and Embryology, S.E. Cassino and Co., Boston, pages 80-81
Zeitschrift fur Angewandte Mikroskopie (1899) Advertisements from Heinrich Boecker, Vol. 4, advertising sections of numerous issues
Zeitschrift fur Instrumentenkunde (1884) Ueber ein neues Mikrotom mit Gefriereinrichtung, automatischer Messerfuhrung und selbstthatiger Hebung des Objectes, Von Mechaniker W. Emil Boecker in Wetzlar, Vol. 4, pages 125-127
Zoologisches Adressbuch (1895) "Wetzlar, Rheinprovinz. Heinrich Boecker, Mikroskopisches Institut - Steinstrasse. Spec. Mikrosk. Praparate.", R. Friedlander & Sohn, Berlin, page 74
